offset sublimation ink

PDF Format

1. Use Principle It it used on all kinds of offset machine. With the ink,first print image on paper,

INQUIRY

Product details

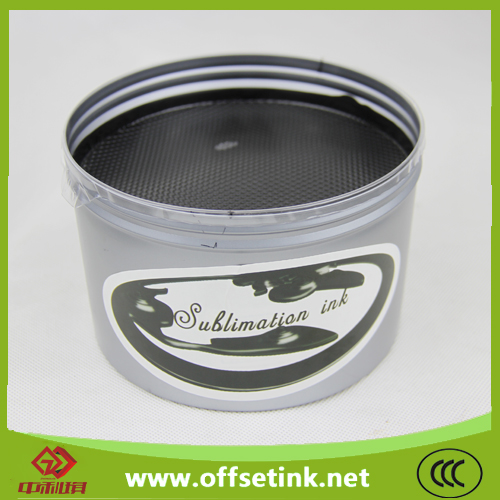

Offset Sublimation Ink

1. Use Principle

It it used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image onto various
materials by heat transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and
go into fabric.

2. Use Scope
Offset (one color, two color and four color machines)

3. Use Method
1.Be able to adapt to the demand for middle-speed or high-speed printing.
2.During the normal condition, use the ink on the machine directly.

4. The printing process just needs 3 steps
1. Print the image on paper, and normal paper is ok.
2. Put the printed paper on substrate, such as polyester and nylon fabric.
3. Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will
be transfer printed from paper onto the substrate.

5. Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile

6. Transfer Paper
Coated paper, offset paper,chrome paper and calendered paper.
Transfer paper should be 80-90 gr/m² with dimensional stability.

7. Colors
Magenta,Yellow,Cyan,Black.

8. Product Characteristics Product characteristics
* No Crust
a.Granula size is less than 5 micron.
b.No crust in 7 days at normal temperature.

* Safety
Passed SGS,DGM,MSDS,totally environment-friendly!

* Advantage
Good stability on the machine,clear dot reproduction,excellent ink-water balance.
Be able to adapt to the demand for middle-speed or high-speed printing.
During the normal condition, use the ink on the machine directly.

Our Sublimation Ink transferred into fabric

*P.S. please make samples before the final printing to confirm the exactly image.

9.Notice

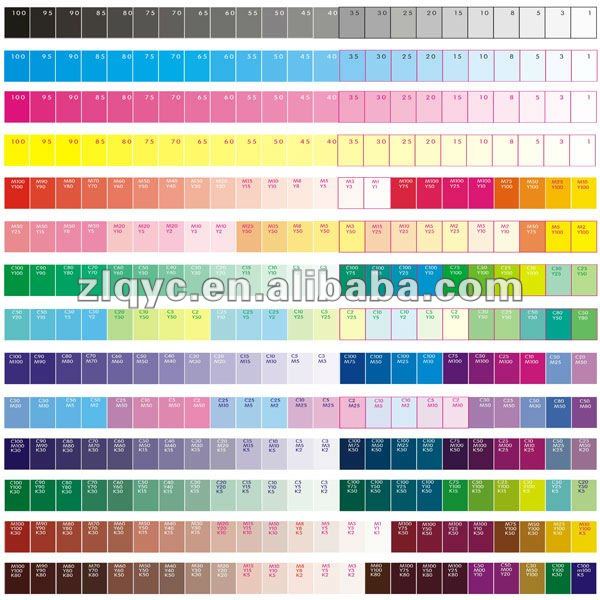

Since sublimation ink belongs to gas shading, then the colour showing on paper and the colour showing on fabric are
different. So when we make PS-plate, the CMYK ratio is different from normal offset plate making.

For example:

a. To get 50%C on fabric, the color on paper should be 30%C;
b. To make red PS-plate, the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate, the ratio is 100%C and 20%M;
d. To make green PS-plate, the ratio is 80%C and 90%Y;
e. If we want to get yellow like Asian skin, the ratio is 10%~11%M, 7%~8%Y and a little cyan.Cyan can be adjusted
acooding to the requirement.

Transfer temparature
About 185~220°C

Transfer time
About 20~40 seconds

Product Name	Sublimation Offset Ink
Brand Name	Zhongliqi
Model	HPA804,HPA604,HPA404,HPA204
Available Color	Cyan , Magenta ,Yellow , Black
Shelf Life	3 years
Printing Type	Offset transfer printing
MOQ	1kg
Package	1kg/tin , 12tin/carton
Certificates	SGS , DGM , MSDS
Supply Capability	1000000kg per month

The following is the transfer printing parameters for your reference

Name of fabric	Transfer temperature	pressure	Time
Polyester fabric	205°C~220°C	0.5kg/cm2	10~30 seconds
Polyester deformation fabric low elastic	195°C~205°C	0.5kg/cm2	30 seconds
Triacetate fabrics	190°C~200°C	0.5kg/cm2	30~40 seconds
Nylon fabric	195°C~205°C	0.5kg/cm2	30~40 seconds
Acrylic fabric	200°C~210°C	0.5kg/cm2	30 seconds
Two acetate fiber fabric	185°C	0.5kg/cm2	15~20 seconds
Polypropylene nitrile	190°C~220°C	0.5kg/cm2	10~15 seconds

Dye degree:(European Standard)

Color fastness
Color	Magenta(HPA604)	Yellow(HPA204)	Blue(HPA404)	Black(HPA804)
Rank	5-6	6	4	4

10. Storage Indications and Packing
Products in their original unopened containers maintain their characteristics for two year if stored in a well ventilated
place with a temperature between + 5° and + 40°C.Products opened, but immediately closed after use, have a shelf
life of at least 12 months.

Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
