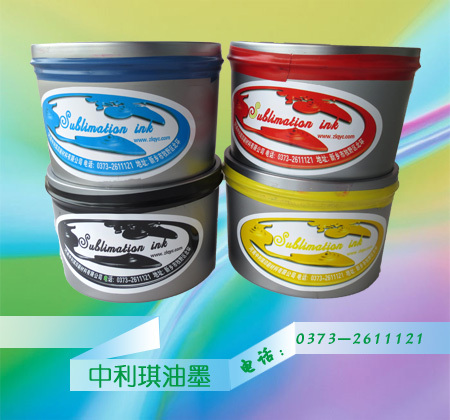

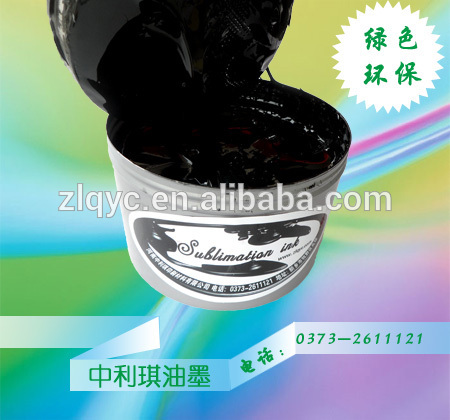

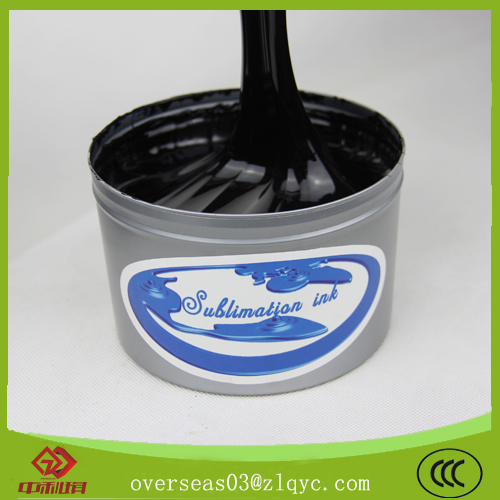

Sublimation inks are designed to apply a mirror image onto paper for transfer to the final substrate.
The prints are transferred via heat and pressure onto most polyester or synthetic materials. When first
printed onto paper, sublimation inks appear to be weaker and duller than standard inks, however when
transferred onto suitable substrates, the dyes develop their true color strength and brilliance.

Use Principle

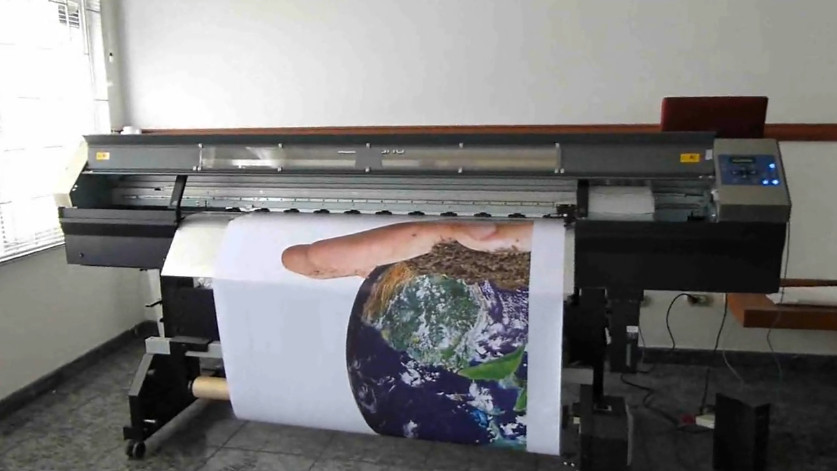

It is used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image
onto various materials by heat transfer press, especially for polyester fabric. Under high temperature, the
ink will become gas and go into fabric.

Advantages
(1)Good stability on the machine,clear dot reproduction,excellent ink-water balance.
(2)Be able to adapt to the demand for middle-speed or high-speed printing.
(3)During the normal condition, use the ink on the machine directly.

Use Scope

Offset (one color, two color and four color machines)

Suitable Fabrics

Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile.

 Typical Uses of  Zhongliqi Sublimation Offset Ink

Surfboards , Skateboards , Snowboards , Skies , Custom Furniture , Interior Design ,
3D dye sublimation applications , sublimation aluminum sheet , key rings , display products ,
plates , mugs , ceramic etc.

conditional attribute

(1)Be able to adapt to the demand for middle-speed or high-speed printing.
(2)During the normal condition, use the ink on the machine directly.

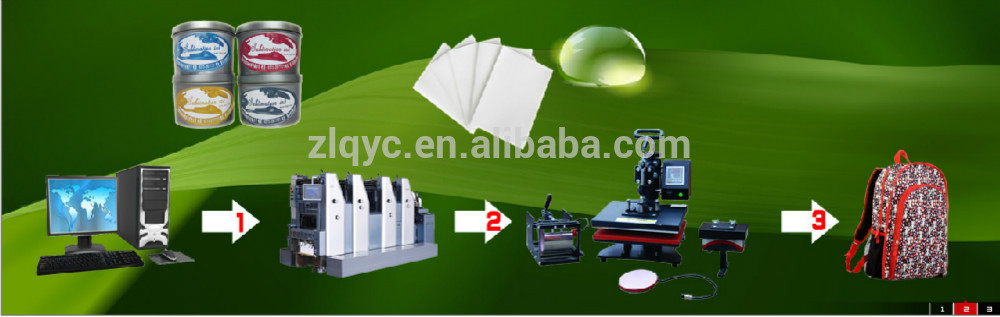

The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature
reaches 180-220°C, the image will be transfer printed from paper onto the substrate.

Transfer Paper
Coated paper, offset paper,chrome paper and calendered paper.
Transfer paper should be 80-90 gr/m2 with dimensional stability.

Transfer temparature

About 185~220°C

Transfer time
About 10~30 seconds

transfer pressure

0.5kg/cm2

Since sublimation ink belongs to gas shading, then the colour showing on paper and the colour showing
on fabric are different. So when we make  PS-plate, the CMYK ratio is different from normal offset plate making.

Zhongliqi Sublimation Printing Ink Co., Ltd is the largest chinese manufacturer of sublimation inks for
all commercial printing applications, including offset lithography printing, digital printing, silk-screen printing
and rotogravure printing.

we could  supply you the best quality sublimation ink , and  give you a competitive price, our products are

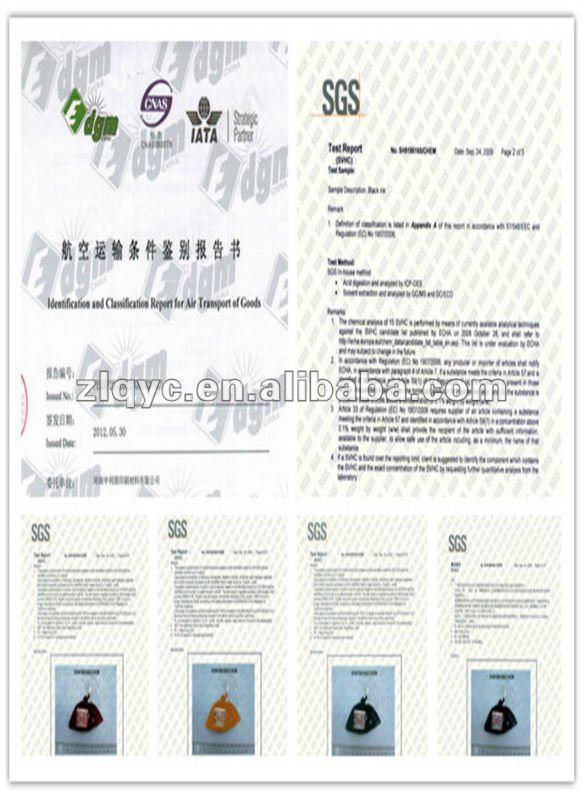

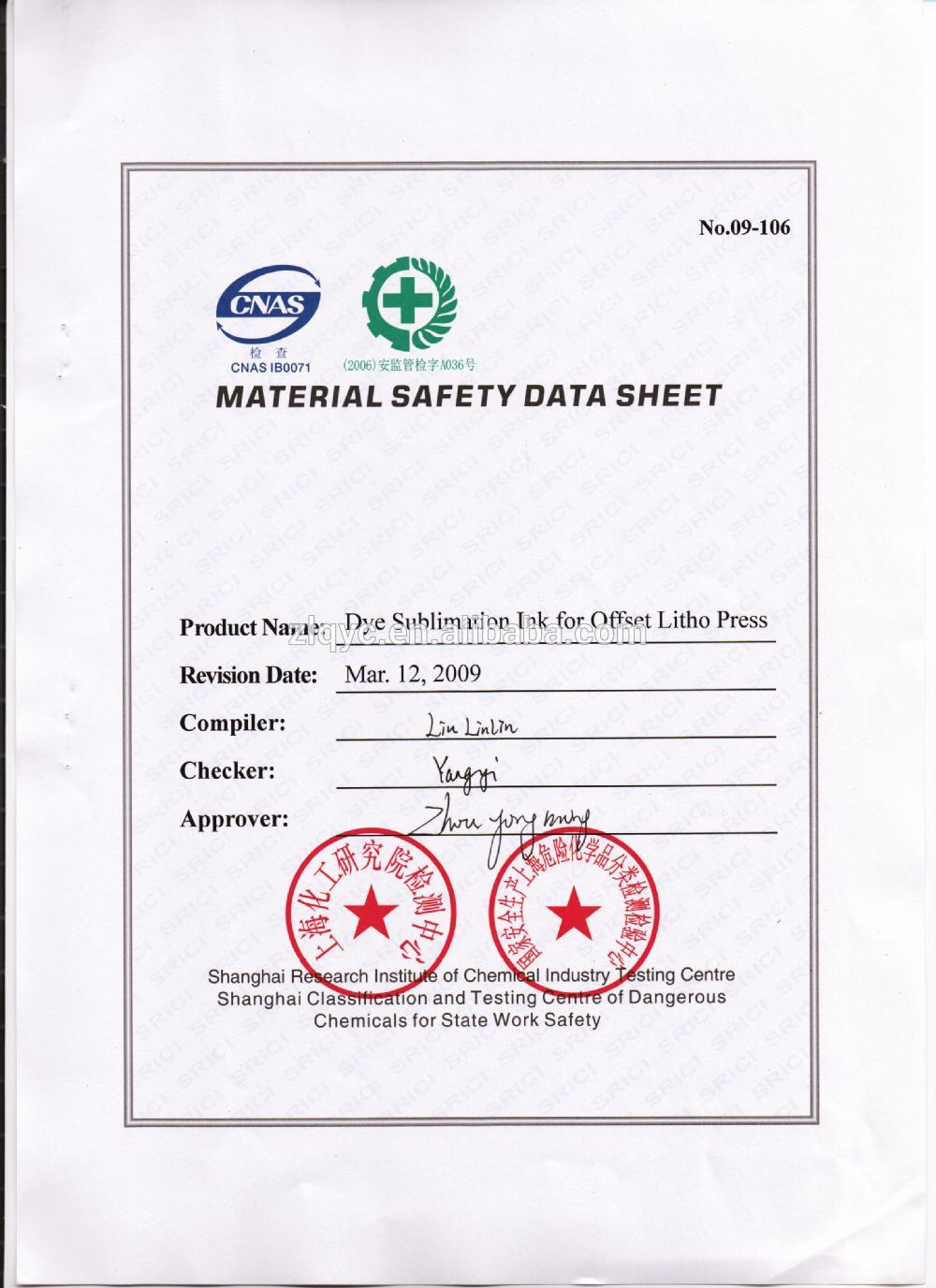

manufactured in accordance  with international standards, such as MSDS, SGS,GDM standards.

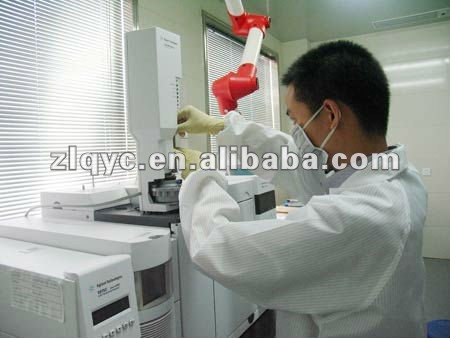

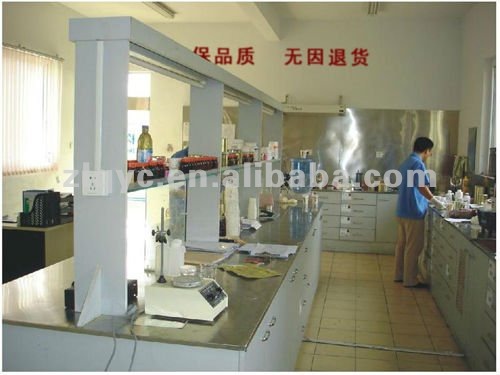

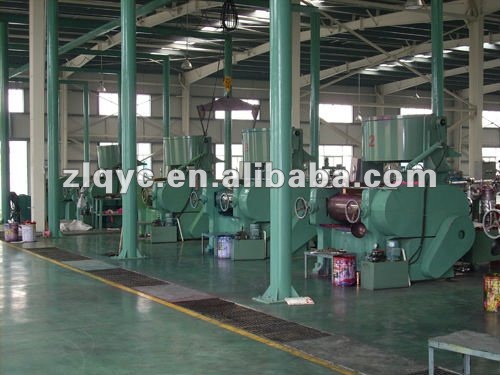

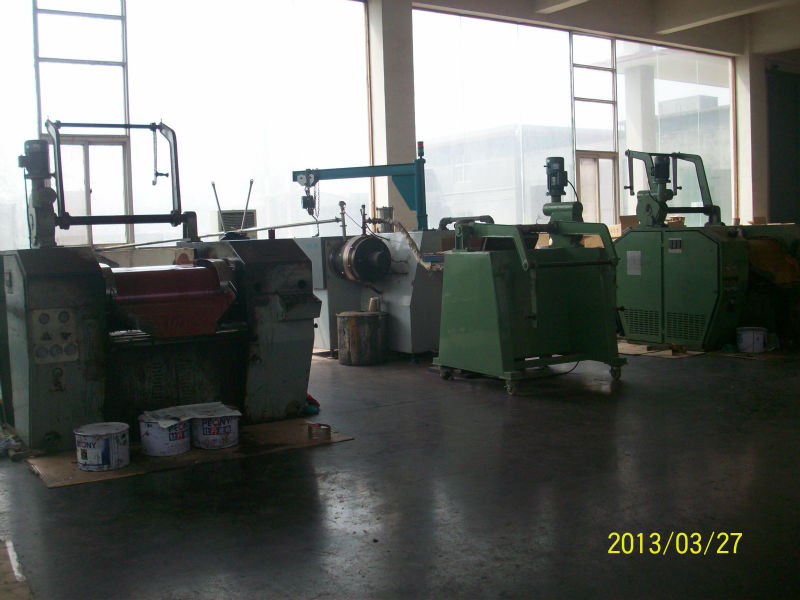

Our   Great Techinical Strength
