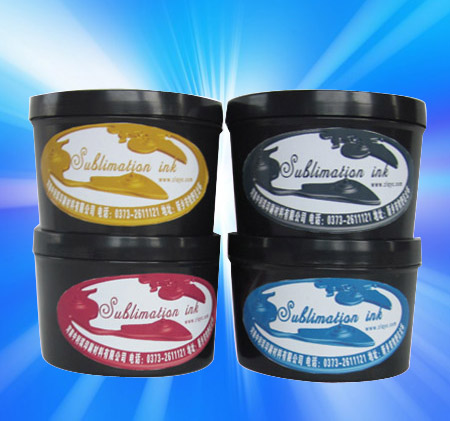

Sublimation offset printing transfer ink
Use Principle
It it used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image
onto various materials by heat transfer press, especially for polyester fabric. Under high temperature,
the ink will become gas and go into fabric.
Use Scope
OFFSET (one color, two color and four color machines)
Use Method
1.Be able to adapt to the demand for middle-speed or high-speed printing.
2.During the normal condition, use the ink on the machine directly.
The printing process just needs 3 steps
1. Print the image on paper, and normal paper is ok.
2. Put the printed paper on substrate, such as polyester and nylon fabric.
3. Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C,
the image will be transfer printed from paper onto the substrate.
Suitable Fabrics
Polyester fabric
Triacetate fabric
Nylon fabric, Acrylic fabric
Polypropylene nitrile
Transfer Paper
Coated paper, offset paper,chrome paper and calendered paper.
Transfer paper should be 80-90 gr/m² with dimensional stability.
Colors
Magenta, Yellow, Cyan, Black
Parameters for the Transfer
Temperature: 200° - 220° C.
Time:20 – 40 seconds.
Our Sublimation Ink transferred into fabric
The following is the transfer printing parameters for your reference
|
Name of Fabric |
Transfer temperature |
pressure |
Time |
|
Polyester fabric |
205°C~220°C |
0.5kg/cm2 |
10~30 seconds |
|
Polyester deformation fabric low elastic |
195°C~205°C |
0.5kg/cm2 |
30 seconds |
|
Triacetate fabrics |
190°C~200°C |
0.5kg/cm2 |
30~40 seconds |
|
Nylon fabric |
195°C~205°C |
0.5kg/cm2 |
30~40 seconds |
|
Acrylic fabric |
200°C~210°C |
0.5kg/cm2 |
30 seconds |
|
Two acetate fiber fabric |
185°C |
0.5kg/cm2 |
15~20 seconds |
|
Polypropylene nitrile |
190°C~220°C |
0.5kg/cm2 |
10~15 seconds |
Dye degree:(European Standard)
|
Color Fastness |
|
Color |
Magenta(HPA604) |
Yellow(HPA204) |
Blue(HPA404) |
Black(HPA804) |
|
Rank |
5-6 |
6 |
4 |
4 |
Please be noted
The control of the colors is always carried out after the transfer of the final supports.
The relationship between the temperature and the time of contact is important in order to have
the optimal color resistance and ink penetration (the longer the time of transfer, the better the ink
penetration of the fabric).
Packing
1kg/tin,12kg/carton. Carton inside,wooden outside.
