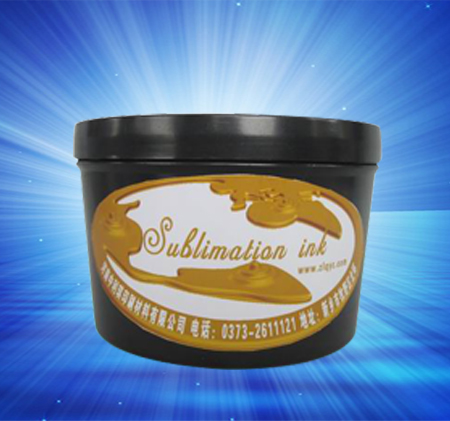

Sublimation offset transfer ink (Yellow)
For our sublimation offset ink,first print image on paper,second put the paper on fabric,and then press the paper with transfer machine.Under the temperature about 190°C-220°C,the ink on paper will become gas and go into fabric.So the image will be from paper to fabric.
Printing Advantages
1.Excellent ink-water balance.
2.Dot reproduction clear.
3.Complete solid fast.
4.Good stability on the machine.
The printing process just needs 3 steps
(1). Print the image on paper,and normal paper is ok.
(2). Put the printed paper on substrate,such as polyester and nylon fabric.
(3). Put the paper and fabric on the heat-transfer machine.When the temperature reaches 180-220°C, the image will be transfer printed from paper onto the substrate.
Main Characteristics
Inks suitable for the decoration of synthetic fabrics using the sublimation transfer technique.Transfer sublimation printing is a procedure in which
particular dyes are first stamped on paper, or other suitable material, and with the application of heat to the printing, a mirror image is then
transferred onto textile articles.
Application Fields
Synthetic fabric for clothing.
Synthetic fabric for furnishings.
Decoration of pretreated materials.
Printing Techniques
OFFSET (one color, two color and four color machines)
Specific Supports
Coated paper, chrome paper and calendered paper from 90 gr/m² with dimensional stability.
The following is the transfer printing parameters for your reference
|
Name of fabric |
Transfer temperature |
pressure |
Time |
|
Polyester fabric |
205°C~220°C |
0.5kg/cm2 |
10~30 seconds |
|
Polyester deformation fabric low elastic |
195°C~205°C |
0.5kg/cm2 |
30 seconds |
|
Triacetate fabrics |
190°C~200°C |
0.5kg/cm2 |
30~40 seconds |
|
Nylon fabric |
195°C~205°C |
0.5kg/cm2 |
30~40 seconds |
|
Acrylic fabric |
200°C~210°C |
0.5kg/cm2 |
30 seconds |
|
Two acetate fiber fabric |
185°C |
0.5kg/cm2 |
15~20 seconds |
|
Polypropylene nitrile |
190°C~220°C |
0.5kg/cm2 |
10~15 seconds |
Dye degree:(European Standard)
|
Color fastness |
||||
|
Color |
Magenta |
Yellow |
Blue |
Black |
|
Rank |
5-6 |
6 |
4 |
4 |
|
Special Color |
Red Deep |
Black Deep |
||
Sublimation ink designed for offset printing, is used by applying the reverse image using litho paper, before being transferred to a heat press on POLYESTER clothing, or other
synthetic materials, ceramics, vinyl, plastic, etc.., When is transferred onto the substrate PYROSCRIPT offers bright colors and good resistance to light as well to washing.
Storage Indications
Products in their original unopened containers maintain their characteristics for three year if stored in a well ventilated place with a temperature between + 5° and + 40°C.Products opened, but immediately closed after use, have a shelf life of at least 12 months.
