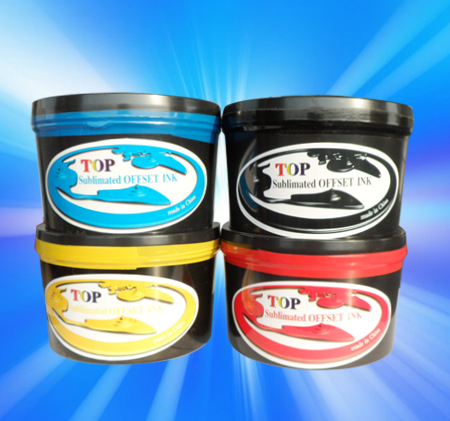

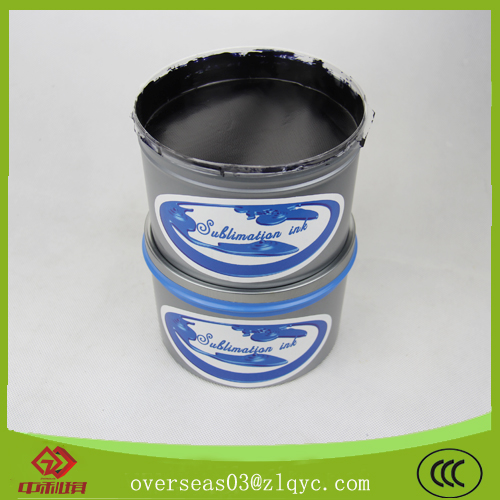

Print Sublimation Transfer Inks for offset
1. Goods name: Sublimation Offset Ink
2. Model & Color: HPA --CMYK
3. Product Feature: No crust.
The ink won’t crust in 7 days at normal temperature exposing under air.
The offset machine’s ink-box won’t crust in 32 hours.
4. Dye degree (European standard)
Light
Fastness |
Magenta |
Yellow |
Cyan |
Black |
|
5-6 |
6 |
2-3 |
2-3 |
5. Available printer: it applies to any single-color, two-color and multi-color offset printing machine which supply single paper
once time. The printing speed is suitable for middle or high speed printing.
6. Available paper: offset paper, chrome paper, coated paper.
7. Printed materials: Fabric, mug, metal, wood, ceramic, and etc.
8. Use Method: In normal condition, use the ink on press directly. The chemical for normal offset printing also can be available,
to adjust the ink attribution.
9. Attention: (1) The color on paper and the color on fabric are different. The exact special color should refer to our color card. (2)
When make the PS-plate, the design should be mirror image. It means the image on paper is reverse, but after transfer on fabric, the
image will be right.
10. Transfer parameters:
|
Fabric Name |
Transfer Temperature |
Transfer Pressure |
Transfer Time |
|
Polyester Fabric |
205¡æ¡«220¡æ |
0.5kg/cm2 |
10¡«30s |
|
Polyester low flexibility Fabric |
195¡æ¡«205¡æ |
0.5kg/cm2 |
30s |
|
Three-acetate fiber fabric |
190¡æ¡«200¡æ |
0.5kg/cm2 |
30¡«40s |
|
Nylon Fabric |
195¡æ¡«205¡æ |
0.5kg/cm2 |
30¡«40s |
|
Acrylic Fabric |
200¡æ¡«210¡æ |
0.5kg/cm2 |
30s |
|
Two-acetate Fabric |
185¡æ |
0.5kg/cm2 |
15¡«20s |
|
Gather propionitrile Fabric |
190¡æ¡«220¡æ |
0.5kg/cm2 |
10¡«15s |
For other materials, please refer to the above table.
Mug, metal, ceramic, cotton needs sublimation coating before transferring.
11. Store: Avoid sunshine and water, sealed
Shelf life: 3 years (from production date)
