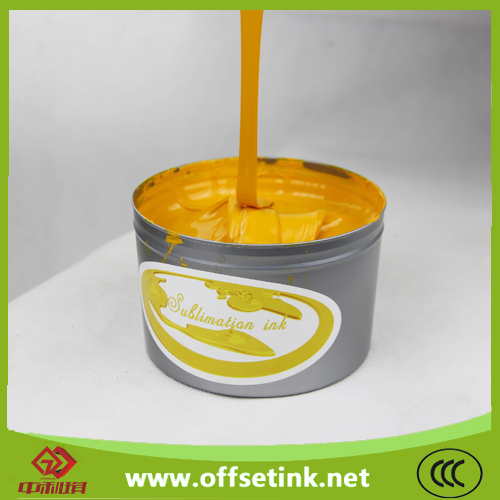

New-design offset sublimation thermal ink
Zhongliqi offset sublimation thermal ink used on all kinds offset printing machine . such as single-color , dual-color
and multi-color offset printing machine .Be adaptable to the demand for medium-speed or high-speed printing. For our
thermal sublimation ink,first print image on paper,second put the paper on fabric,and then press the paper with transfer
machine.Under the temperature about 190°C-220°C,the ink on paper will become gas and go into fabric.So the image
will be from paper to fabric.
Strong Point of Zhongliqi offset sublimation thermal ink
1) This sublimation ink is safe for the environment and has no harm to skin . It does not belong to corrosives.
2) There is no accumulation of ink on the rolls and the number of machine washings is greatly reduced.
3) Black is very intense and gives good coverage without domination of the other colours .
4) With high printing performance and outcome .
5) Have no skinning within 36 hours.
Typical Uses of Zhongliqi offset sublimation thermal ink
Biking Jerseys, Team Uniforms , Fashion T-Shirts , Garments , Custom Roll Textiles , Flags , Banners , Tradeshow Booths
and Displays , Casino Tables , Casino Chips , Surfboards , Skateboards , Snowboards , Skies , Custom Furniture , Interior
Design , 3D dye sublimation applications , sublimation aluminum sheet , key rings , display products , plates , mugs ,
ceramic etc.
Use Method of Zhongliqi offset sublimation thermal ink
1) The first part is very simple and resembles exactly to normal process of offset printing . Precisely in the same manner,
we offset print the artwork (as mirror image) on the offset paper using sublimation offset ink .
2) Put the printed paper on substrates,such as polyester and nylon fabric .
After offset printing, put the printed paper on the surface of the substrates , and with printed surface facing downwards
on the surface of substrates.
3) Put both the paper and substrates on the heat press.
And heat ,time and pressure is applied using a heat press. The ink sublimates i.e. converts to gaseous form and gets
deposited "into" the surface, thus transferring image.
4) Finally ,take out paper and fabric from heat press ,the final product will be born.
Technical Parameter of Our offset sublimation thermal ink
1.Apply to single-color,two-color and multi-color offset printing machine which supply single paper once.
2.Transfer Paper:coated paper,coating paper,offset paper,or cardboard.
3.Transferred materials can be fabric,cotton,mug,metal,wood,ceramic and etc.Fabric can be transferred directly,other
materials need sublimation coating.
4.Color Series:magenta,yellow,cyan.black
Our Suggestion Before Use Our Sublimation Offset Ink
Before use the ink,play a sample plate printing,if the deviation is not great,and then determinethe comp engraving and
printing. Because sublimation ink for gas coloring so can not according to the proportion of ordinary printing Fapai printing.
a. To get 50%C on fabric,the color on paper should be 30%C;
b. To make red PS-plate,the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate,the ratio is 100%C and 20%M;
d. To make green PS-plate,the ratio is 80%C and 90%Y;
e. To get yellow like Asian skin,the ratio is 10%~11%M and a little cyan.Cyan can be adjusted according to your requirment.
|
Product Name |
Sublimation Offset Ink |
|
Brand Name |
Zhongliqi |
|
Model |
HPA804,HPA604,HPA404,HPA204 |
|
Available Color |
Cyan , Magenta ,Yellow , Black |
|
Shelf Life |
3 years |
|
Printing Type |
Offset transfer printing |
|
MOQ |
1kg |
|
Package |
1kg/tin , 12tin/carton |
|
Certificates |
SGS , DGM , MSDS |
|
Supply Capability |
1000000kg per month |
|
Conditions of transfer printing |
|
Fabric Name |
Temperature of transfer printing |
Pressure |
Time |
|
Polyester Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Polyester low flexibility Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Three-acetate fiber fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Nylon Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Acrylic Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Two-acetate Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
|
Gather propionitrile Fabric |
210°C-230°C |
0.5kg/cm2 |
15-30s |
Color fastness |
|
Color |
Magenta |
Yellow |
Blue |
Black |
|
Rank |
5-6 |
6 |
4 |
4 |
Storage Indications
Products in their original unopened containers maintain their characteristics for three year if stored in a well ventilated place
with a temperature between + 5° and + 40°C.Products opened, but immediately closed after use, have a shelf life of at least
12 months.
