High Light Fastness Sublimation Offset Printing Ink

High Light Fastness Sublimation Offset Printing Ink

High Light Fastness Sublimation Offset Printing Ink Product Introduction Our sublimationoffsetprinti
INQUIRY
Product details

                          High Light Fastness Sublimation Offset Printing Ink



Product Introduction

product introduction

Our sublimation offset printing ink is used on all kinds of offset machine(one color, two color and four color machines) .
Be adaptable to the demand for medium-speed or high-speed printing.

Suitable Fabrics

Polyester fabric,

Triacetate fabric,

Nylon fabric,

Acrylic fabric,

Polypropylene nitrile

Transfer Paper

Coated paper,

offset paper,

chrome paper,

calendered paper.

Transfer paper should be 80-90 gr/m² with dimensional stability.

Transfer Temperature

About 185~220°C

Transfer Time

About 20~40 seconds

Color

Cyan, Yellow, Magenta, Black

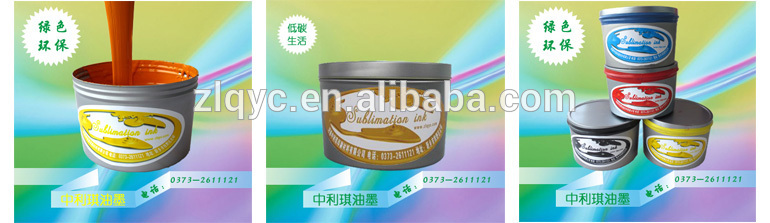

product picture

14879_08

characteristics

1No Crust

a.Granula size is less than 5 micron.

b.No crust in 7 days at normal temperature.

2. Safety

Passed SGS,DGM,MSDS,totally environment-friendly!

3. Advantage

A) non-skinning.
The ink won’t crust in 6 days at normal temperature.
The ink-box of machine won’t crust in 48 hours.
B) Strong dye degree and excellent transfer ability.
C) Good ink-water balance.
D) Nice and clear gradation.
E) Good sun-proof performance and high light fastness.

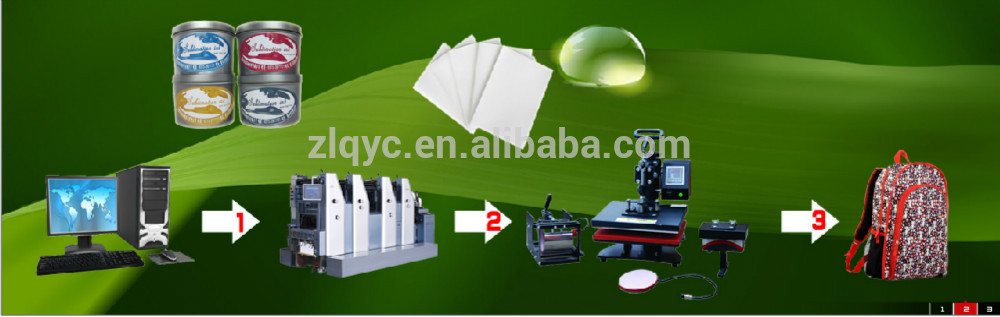

Use  Method

 1.Print the image on paper, and normal paper is ok.

 2. Put the printed paper on substrate, such as polyester and nylon fabric.

 3. Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be transfer printed from paper onto the substrate.

sublimation ink printing service



FAQ

 1.Dye degree:(European Standard)

Color fastness

Color

Magenta(HPA604)

Yellow(HPA204)

Blue(HPA404)

Black(HPA804)

Rank

5-6

6

4

4




2.Transfer Temperature

Fabric Name

Transfer Temperature

Transfer Pressure

Transfer Time

Polyester Fabric

205°C~220°C

0.5kg/cm2

10~30s

Polyester low flexibility Fabric

195°C~205°C

0.5kg/cm2

30s

Three-acetate fiber fabric

190°C~200°C

0.5kg/cm2

30~40s

Nylon Fabric

195°C~205°C

0.5kg/cm2

30~40s

Acrylic Fabric

200°C~210°C

0.5kg/cm2

30s

Two-acetate Fabric

185°C

0.5kg/cm2

15~20s

Gather propionitrile Fabric

190°C~220°C

0.5kg/cm2

10~15s



Attention

Our Suggestion Before Use Our Offset Transfer Printing Ink

Before use the ink,play a sample plate printing,if the deviation is not great,and then determinethe comp engraving and
printing.Because sublimation ink for gas coloring so can not according to the proportion of ordinary printing Fapai printing.

a. To get 50%C on fabric,the color on paper should be 30%C;

b. To make red PS-plate,the ratio is 100%M and 35%-40%Y;

c. To make blue PS-plate,the ratio is 100%C and 20%M;

d. To make green PS-plate,the ratio is 80%C and 90%Y;

e. To get yellow like Asian skin,the ratio is 10%~11%M and a little cyan.Cyan can be adjusted according to your requirment.

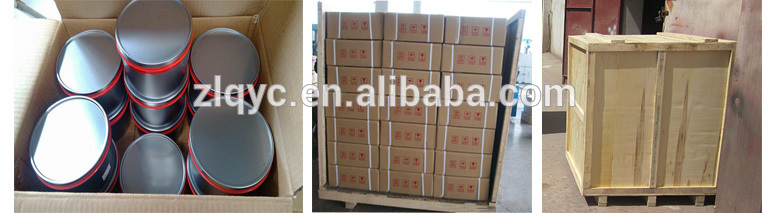

Packaging & Shipping

Deliver goods14879_34


Packaging

1kg/tin, 2kg/tin, 12kg/carton. carton inside, wooden outside.

Storage Indications

Products in their original unopened containers maintain their characteristics for three year if stored in a well ventilated place
with a temperature between + 5° and + 40°C.
Products opened, but immediately closed after use, have a shelf life of at least
12 months.

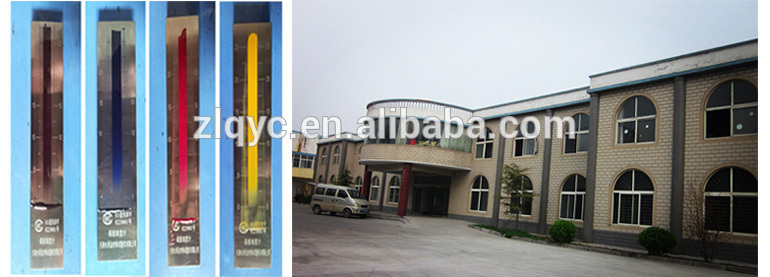

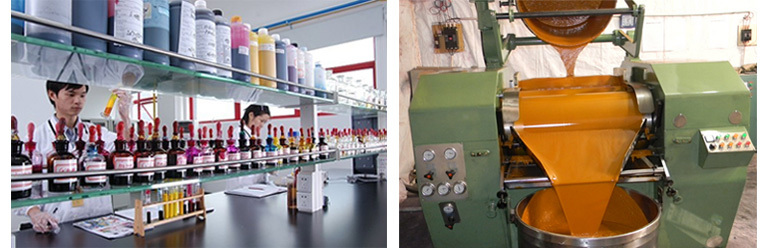

Company Information
