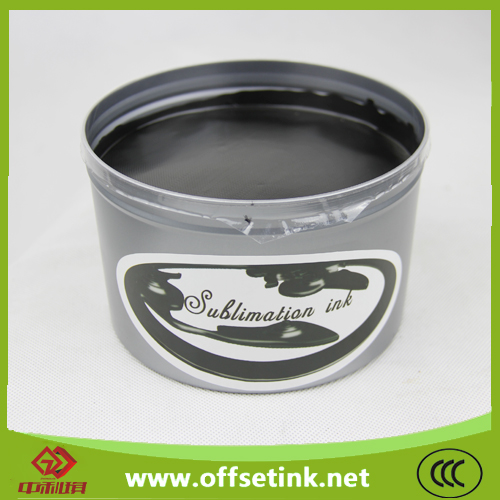

High Density Sublimation Offset Ink
Use Principle of sublimation offset ink
It it used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image onto
various materials by heat transfer press, especially for polyester fabric. Under high temperature, the ink will
become gas and go into fabric. It belongs to gas shading.
Use scope of sublimation offset ink
OFFSET (one color, two color and four color machines)
Use Method of sublimation offset ink
Be able to adapt to the demand for middle-speed or high-speed printing.
During the normal condition, use the ink on the machine directly.
The printing process just needs 3 steps
1. Print the image on paper, and normal paper is ok.
2. Put the printed paper on substrate, such as polyester and nylon fabric.
3. Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the
image will be transfer printed from paper onto the substrate.
Suitable Fabrics
Polyester fabric.
Triacetate fabric.
Nylon fabric.
Acrylic fabric.
Polypropylene nitrile.
Printing materials
Offset paper, Coated paper, Cardboard paper, Chrome paper, calendered paper
Transfer paper should be 90 gr/m² with dimensional stability.
Color
Magenta,Yellow,Cyan,Black. *
*P.S. please make samples before the final printing to confirm the exactly image.
Product characteristics
* No Crust
a.Granula size is less than 5 micron.
b.No crust in 7 days at normal temperature.
* Safety
Passed SGS,DGM,MSDS,totally environment-friendly!
* Advantage
Good stability on the machine,clear dot reproduction,excellent ink-water balance.
Notice
sublimation offset ink apply to offset press.Before using the printing plate you hould Play the sample first ,
if there is no deviation and then determine the comp Engraving and Printing. Because the sublimation ink
for gas coloring, it is not ordinary printing according to the proportion.
Application examples
a. To get 50%C on fabric, the color on paper should be 30%C;
b. To make red PS-plate, the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate, the ratio is 100%C and 20%M;
d. To make green PS-plate, the ratio is 80%C and 90%Y;
Transfer temparature
About 185~220°C
Transfer time
About 20~40 seconds
|
Product Name |
Sublimation Offset Ink |
|
Brand Name |
Zhongliqi |
|
Model |
HPA804,HPA604,HPA404,HPA204 |
|
Available Color |
Cyan , Magenta ,Yellow , Black |
|
Shelf Life |
3 years |
|
Printing Type |
Offset transfer printing |
|
MOQ |
1kg |
|
Package |
1kg/tin , 12tin/carton |
|
Certificates |
SGS , DGM , MSDS |
|
Supply Capability |
1000000kg per month |
The following is the transfer printing parameters for your reference
|
Name of fabric |
Transfer temperature |
pressure |
Time |
|
Polyester fabric |
205°C~220°C |
0.5kg/cm2 |
10~30 seconds |
|
Polyester deformation fabric low elastic |
195°C~205°C |
0.5kg/cm2 |
30 seconds |
|
Triacetate fabrics |
190°C~200°C |
0.5kg/cm2 |
30~40 seconds |
|
Nylon fabric |
195°C~205°C |
0.5kg/cm2 |
30~40 seconds |
|
Acrylic fabric |
200°C~210°C |
0.5kg/cm2 |
30 seconds |
|
Two acetate fiber fabric |
185°C |
0.5kg/cm2 |
15~20 seconds |
|
Polypropylene nitrile |
190°C~220°C |
0.5kg/cm2 |
10~15 seconds |
Dye degree:(European Standard)
|
Color fastness |
||||
|
Color |
Magenta(HPA604) |
Yellow(HPA204) |
Blue(HPA404) |
Black(HPA804) |
|
Rank |
5-6 |
6 |
4 |
4 |
Storage Indications
Products in their original unopened containers maintain their characteristics for two year if stored in a well
ventilated place with a temperature between + 5° and + 40°C.Products opened, but immediately closed
after use, have a shelf life of at least 12 months.
Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
