Dye Sublimation Ink for Silk Screen Printing (ZHONGLIQI)
For our sublimation screen ink could be used on all kinds of screen press. Because it belongs to gas shading, so first print image
on paper, second put the paper on fabric, and then press the paper with transfer machine. Under the temperature about 190°C-220°C,
transfer time 10-30 seconds, the ink on paper will become gas and go into fabric. So the image will be from paper to fabric.
Use Scope
It applies to all kinds of screen printing machine.
Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile.
Typical Uses of Zhongliqi Sublimation Offset Ink
Surfboards , Skateboards , Snowboards , Skies , Custom Furniture , Interior Design , 3D dye sublimation applications ,
sublimation aluminum sheet , key rings , display products , plates , mugs , ceramic etc.
Use Method of Dye Sublimation Ink for Silk Screen Printing
In normal condition, use the ink on screen printer directly. The chemical for normal screen printing can be available to
adjust the ink attribution. First print image on paper by screen printer, then transfer the image from paper to fabric or
other materials by heat transfer press.
Transfer Paper
80-120g wood pulp paper or kraft paper.
Transfer temparature
About 185~220°C
Transfer time
About 10~30 seconds
Transfer pressure
0.5kg/cm2
Since sublimation ink belongs to gas shading, then the colour showing on paper and the colour showing on fabric are different.
So when we make PS-plate, the CMYK ratio is different from normal offset plate making.
The following is the transfer printing parameters for your reference
|
Fabric Name |
Transfer Temperature |
Transfer Pressure |
Transfer Time |
|
Polyester Fabric |
205°C~220°C |
0.5kg/cm2 |
10~30s |
|
Polyester low flexibility Fabric |
195°C~205°C |
0.5kg/cm2 |
30s |
|
Three-acetate fiber fabric |
190°C~200°C |
0.5kg/cm2 |
30~40s |
|
Nylon Fabric |
195°C~205°C |
0.5kg/cm2 |
30~40s |
|
Acrylic Fabric |
200°C~210°C |
0.5kg/cm2 |
30s |
|
Two-acetate Fabric |
185°C |
0.5kg/cm2 |
15~20s |
|
Gather propionitrile Fabric |
190°C~220°C |
0.5kg/cm2 |
10~15s |
Xinxiang Zhongliqi Printing Material Ink Co., Ltd is the largest chinese manufacturer of sublimation inks for all commercial
printing applications, including offset lithography printing, digital printing, silk-screen printing and rotogravure printing.
we could supply you the best quality sublimation ink , and give you a competitive price, our products are manufactured in

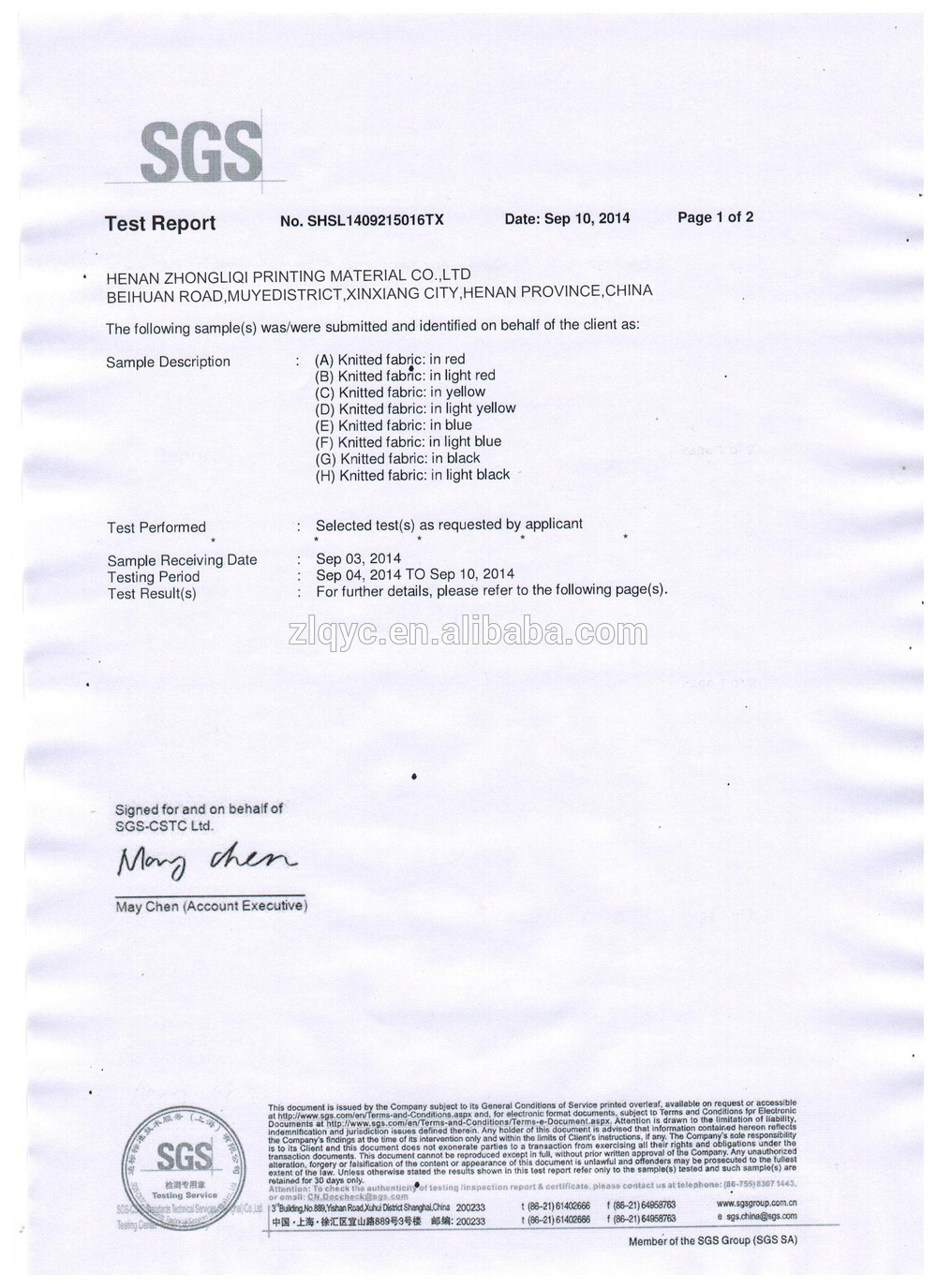

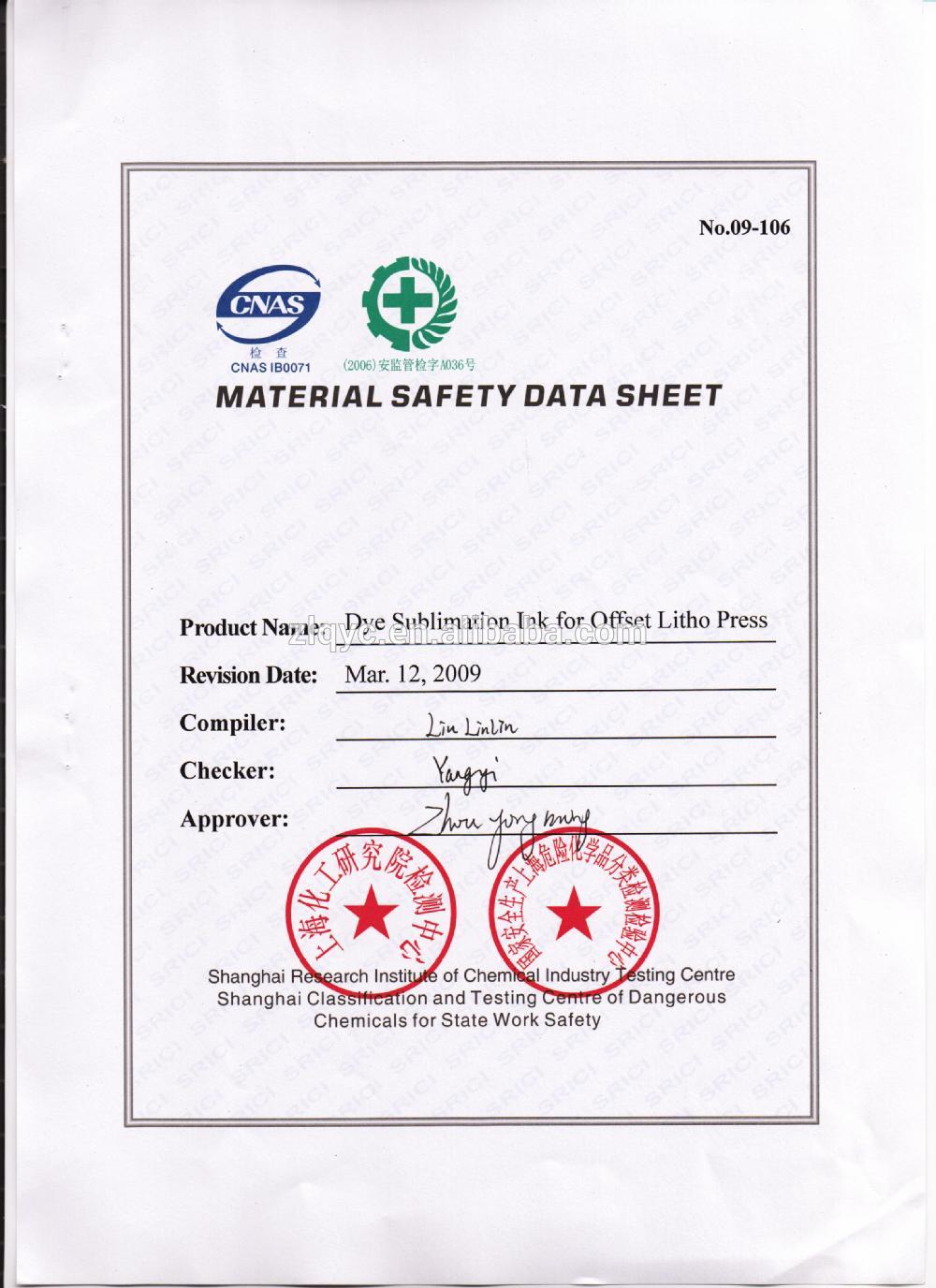

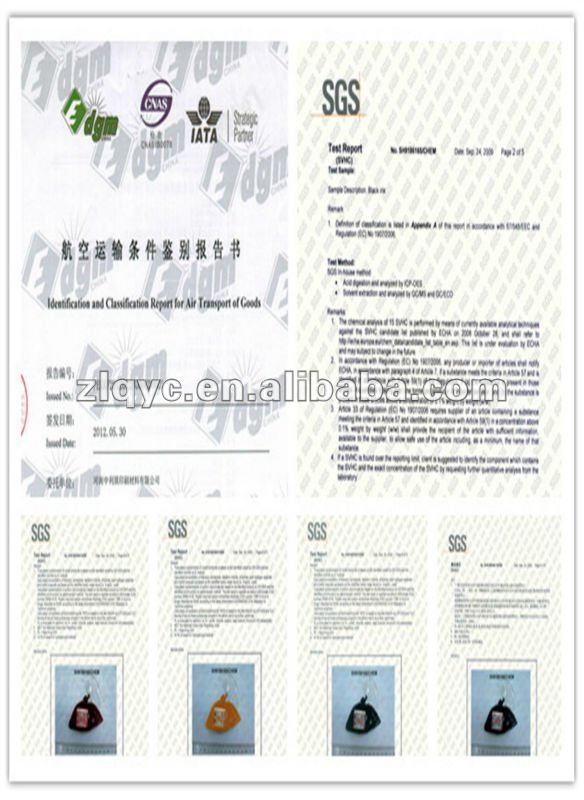

accordance with international standards, such as MSDS, SGS,GDM standards.
