Dye Sublimation ink are designed to apply a mirror image onto paper for transfer to the final substrate. The
prints are transferred via heat and pressure onto most polyester or synthetic materials. When first printed
onto paper, sublimation inks appear to be weaker and duller than standard inks, however when transferred
onto suitable substrates, the dyes develop their true color strength and brilliance.
Available printer
Such as Epson, Mimaki, Mutoh, Roland, and etc.
Printed materials
Fabric, mug, plate, metal, wood, ceramic, and etc.
Use Method
First, design image on computer. Second, print the image out with the ink on paper. Third, transfer the image
from paper to T-shirt or mugs or other materials by heat transfer press.
Transfer Paper
Inkjet printing paper, transfer paper.
Transfer temparature
About 180~220°C
Transfer time
About 15~40 seconds
transfer pressure
0.5kg/cm2
Since sublimation ink belongs to gas shading, then the colour showing on paper and the colour showing on
fabric are different. So when we make PS-plate, the CMYK ratio is different from normal offset plate making.
The following is the transfer printing parameters for your reference
Fabric Name |
Transfer Temperature |
Transfer Pressure |
Transfer Time |
Polyester Fabric |
205°C~220°C |
0.5kg/cm2 |
10~30s |
Polyester low flexibility Fabric |
195°C~205°C |
0.5kg/cm2 |
30s |
Three-acetate fiber fabric |
190°C~200°C |
0.5kg/cm2 |
30~40s |
Nylon Fabric |
195°C~205°C |
0.5kg/cm2 |
30~40s |
Acrylic Fabric |
200°C~210°C |
0.5kg/cm2 |
30s |
Two-acetate Fabric |
185°C |
0.5kg/cm2 |
15~20s |
Gather propionitrile Fabric |
190°C~220°C |
0.5kg/cm2 |
10~15s |
Xinxiang Zhongliqi Printing Material Ink Co., Ltd is the largest chinese manufacturer of sublimation inks
for all commercial printing applications, including offset lithography printing, digital printing, silk-screen printing
and rotogravure printing.
we could supply you the best quality sublimation ink , and give you a competitive price, our products are

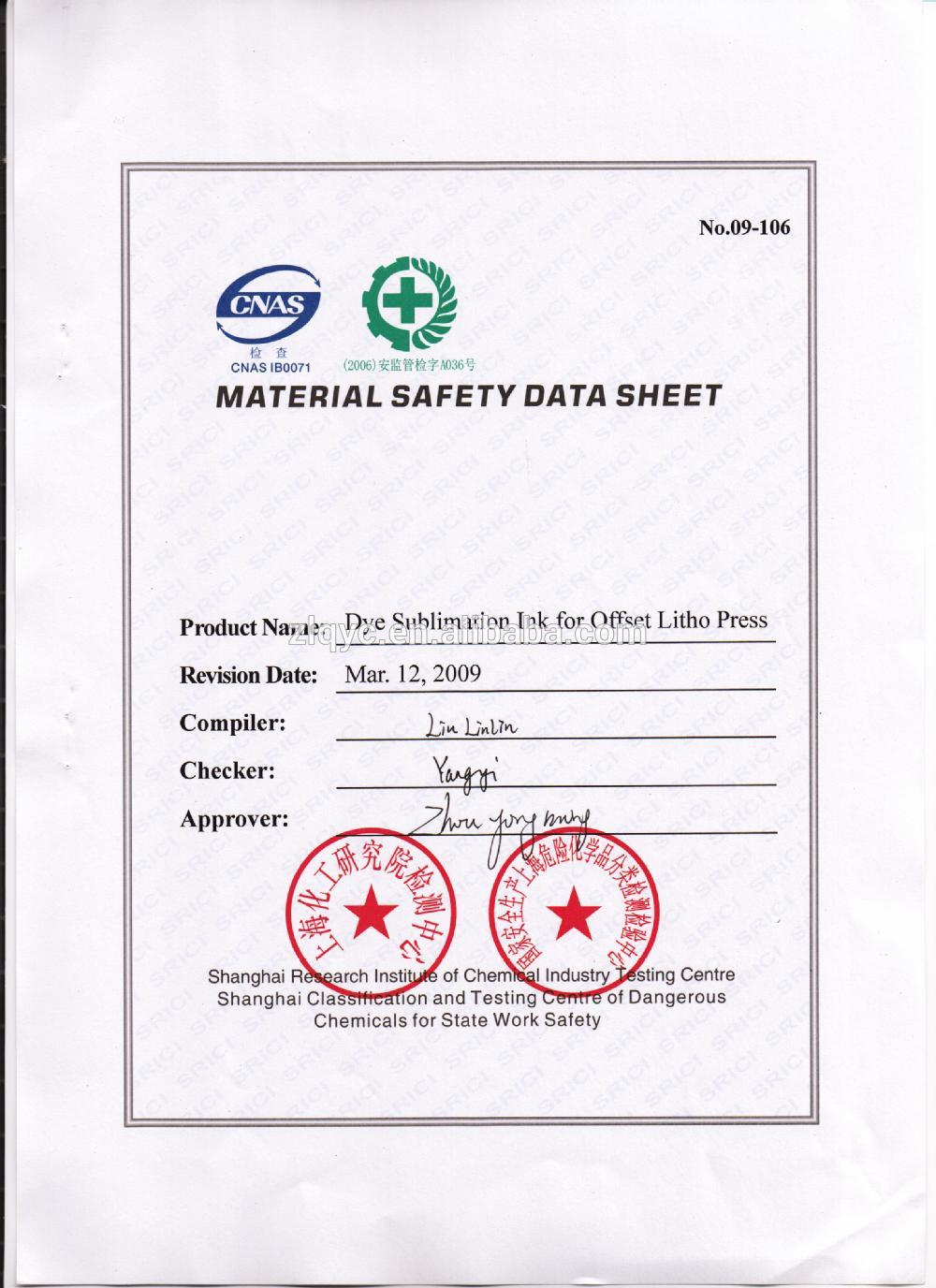

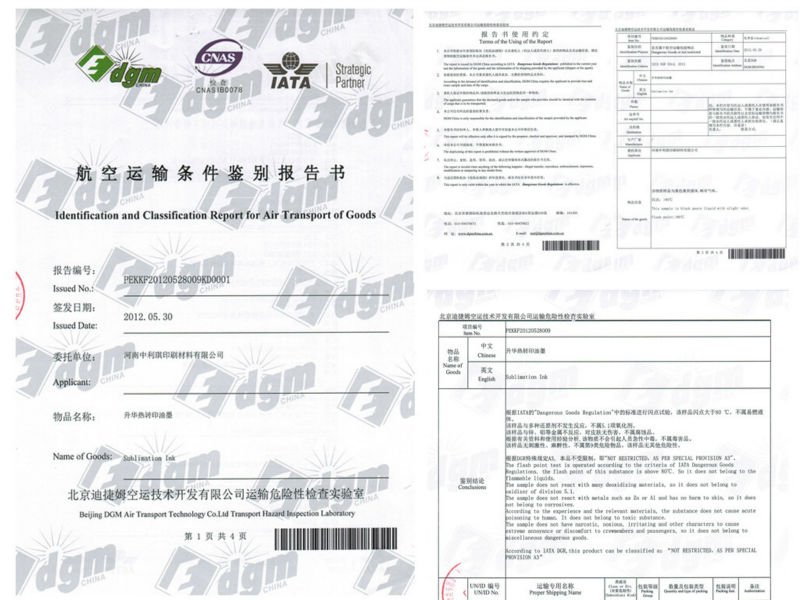

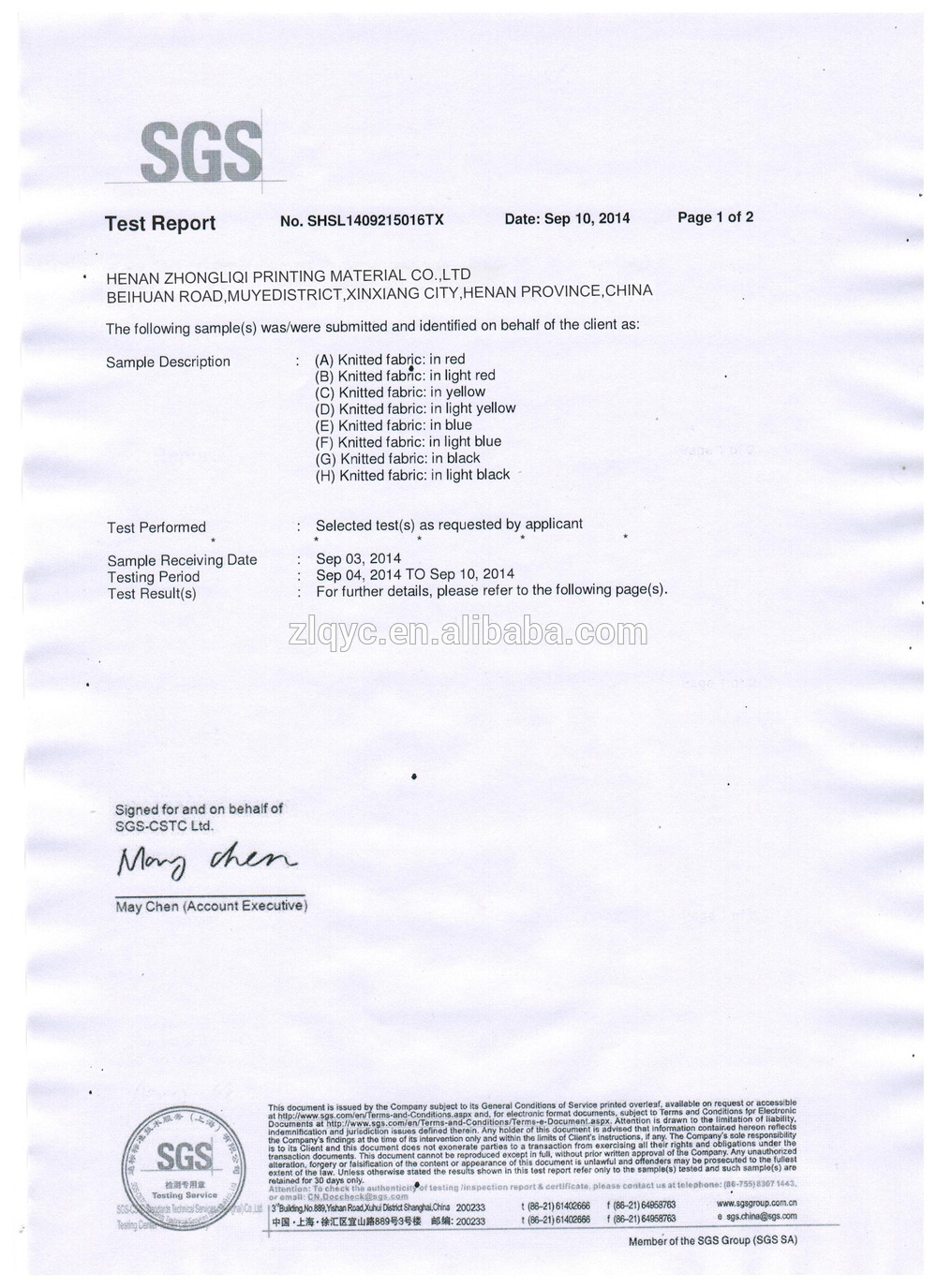

manufactured in accordance with international standards, such as MSDS, SGS,GDM standards.
